CologneDUAL STATION TRANSLATIONAL MAGNETIC ABRASIVE POLISHING MACHINE GG1980

The company mainly produces: magnetic polishing machine, magnetic grinding machine, magnetic deburring machine, magnetic tumbling machine and other polishing machine equipment. Applicable to copper parts, aluminum parts, stainless steel parts, alloy parts and other types of metal parts of the surface treatment problems. One-time solution to polishing cleaning deburring and other post-processing problems. Remove the batch front, oil, welding spots, oxide layer, knife pattern, etc., no dead end bore, cross hole polishing and cleaning, does not affect the accuracy, do not hurt the workpiece.

Video Hotline
400-800-3945

Product introduction

Product Model	GG1980
Dimensions	19807201088
Grinding groove size	1800*520(drum)
Power supply	AC380v(50 60Hz)16A
Motor power	4KW*2
Equipment weight	580KG
Grinding capacity	40-60Kg
Operation mode	forward, reverse, and translation
Steel needle	12kg
Lapping liquid	100L
Motor speed	1400 RPM
Diameter	0.2-2.00mm

Magnetic polishing machine can be used for surface treatment of various materials, such as metal, plastic, ceramics, glass, etc. It is especially suitable for complex shapes and easily deformed workpieces. Magnetic polishing machine has the following advantages: Improve surface finish and achieve mirror effect. Remove surface scratches and defects. Remove burrs and chamfers. Increase surface gloss. Improve the fit and wear resistance of parts. In short, magnetic polishing machine is a highly efficient surface treatment equipment that can improve the surface properties of materials and enhance their aesthetics and usability.

GUANGU METAL POLISHING MACHINE

Consumables: 304 stainless steel magnetic needle, lapping fluid, brightener
Equipment accessory: siemens motor, siemens inverter, N50H High temperature resistant rubidium iron boron strong magnetic
Off-the-shelf finished goods, Can be customized according to customer requirements

Manufacturer direct supply
Quality of craftsmanship
Easy installation Easy to use
Strong magnetic lifetime warranty

Product feature PRODUCT CHARACTERISTICS

01: Metal polishing machine polishing cleaning speed, an average of 5-15 minutes of polishing and grinding；

02: Metal polishing machine is easy to operate, one person can operate more than one metal polishing machine；

03: The metal workpiece is not deformed after polishing, grinding and cleaning, and does not affect the accuracy；

04: The workpiece and magnetic grinding needle can be separated by sieve and needle separator；

05: Can remove the surface of the workpiece welding spot, oxide scale, batch front, burr, chamfer, etc., save time and effort；

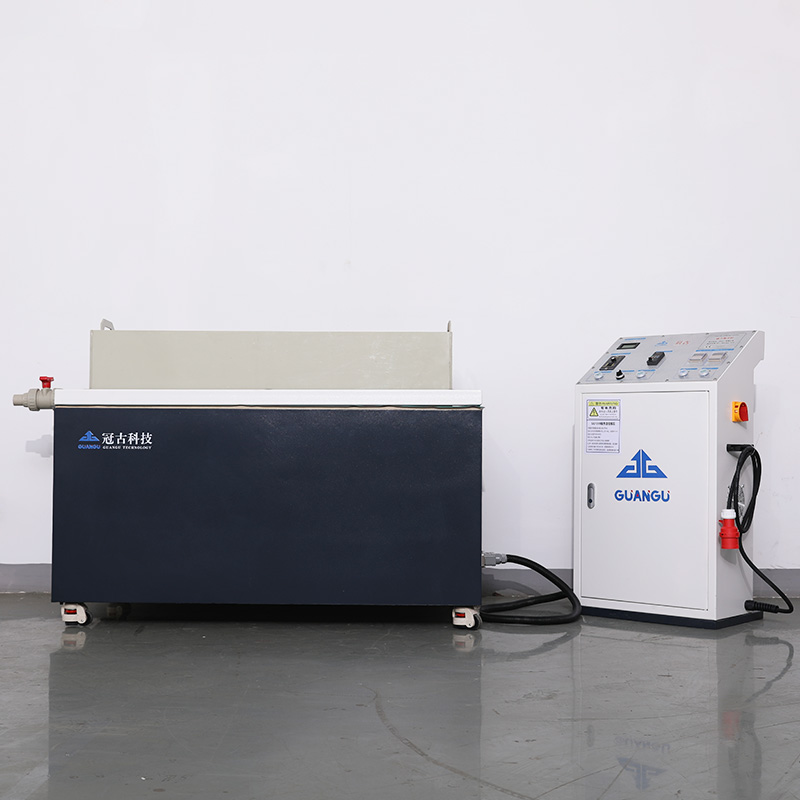

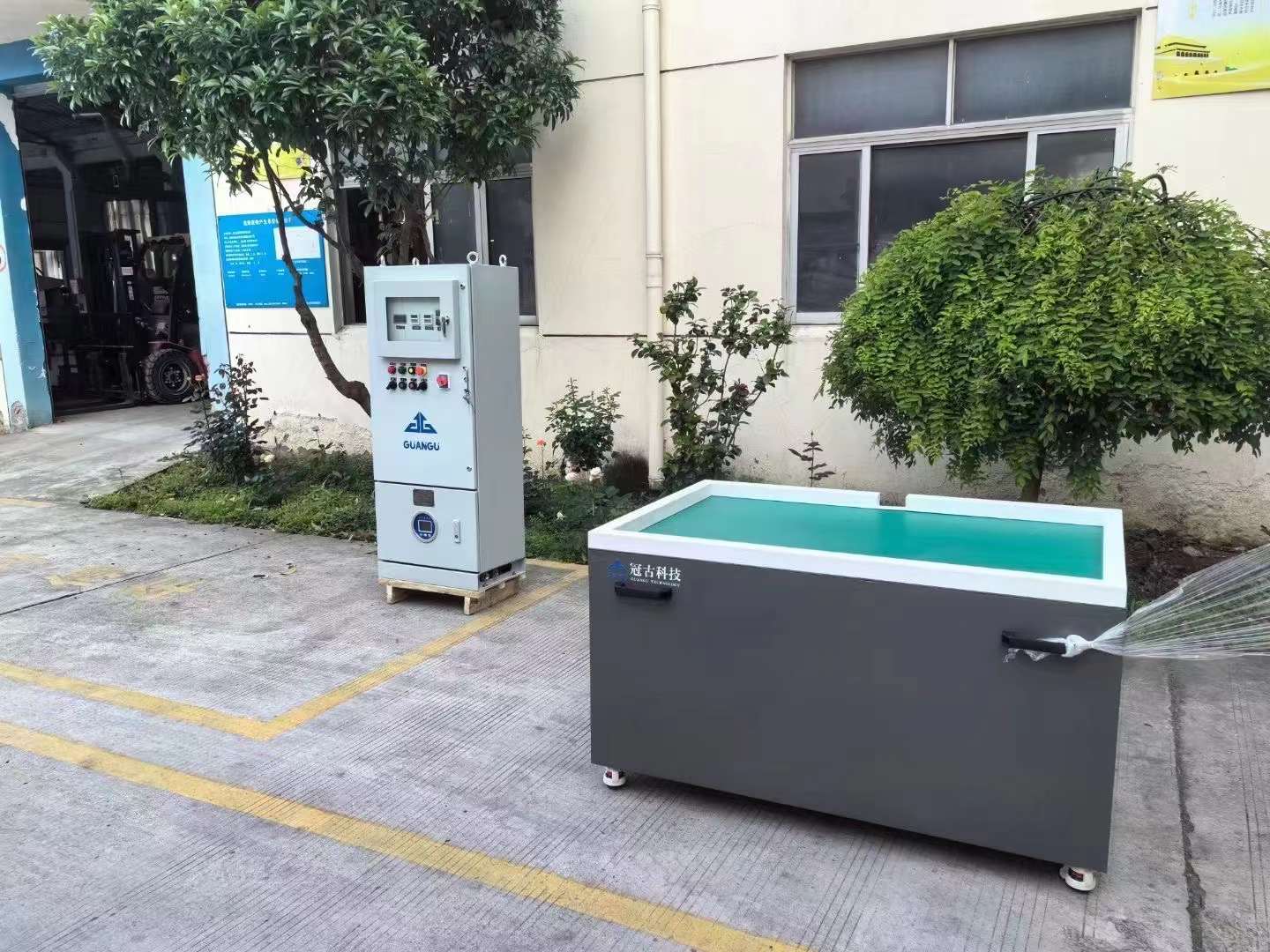

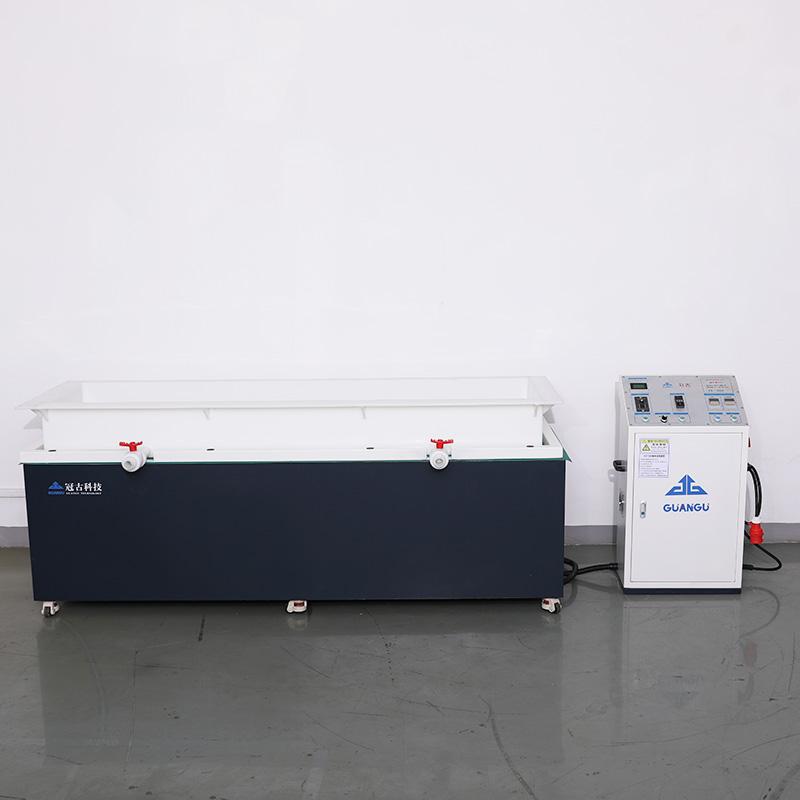

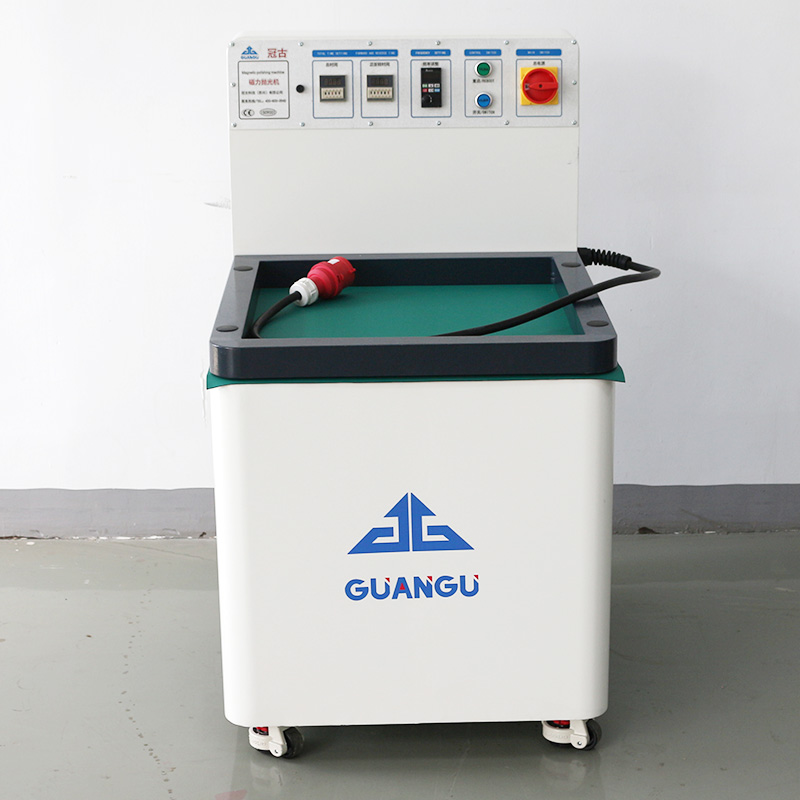

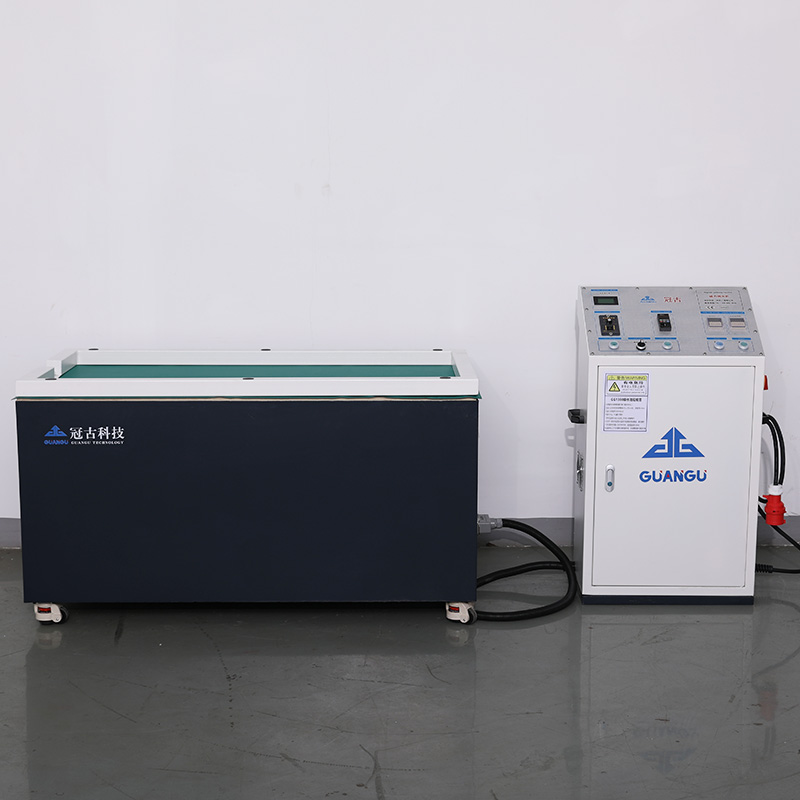

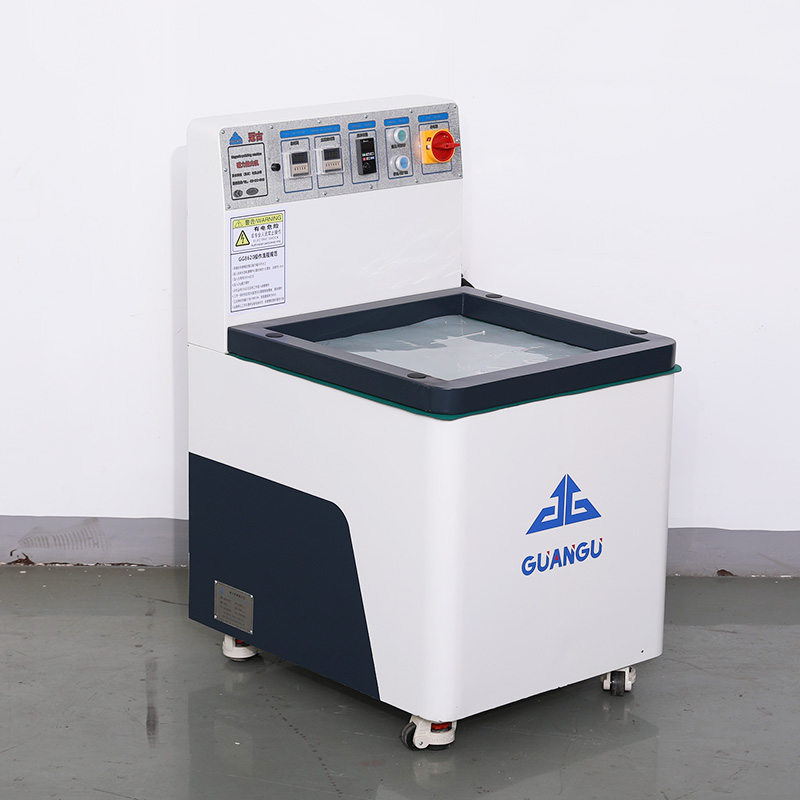

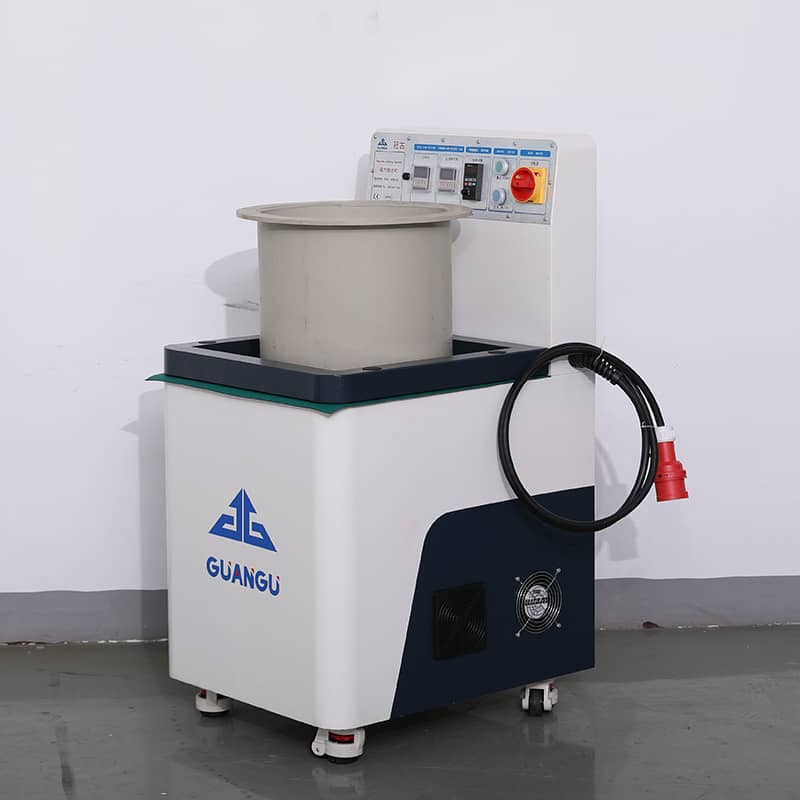

Metal polishing machine PRODUCT DISPLAY

Range of application SCOPE OF USE

1. Precision metal stamping parts 2. Stainless steel parts, 304 stainless steel screws and nuts 3. Magnesium aluminum die casting 4. Zinc aluminum die casting 5. Precision spring, shrapnel parts 6. Electronic, computer and communication parts 7. Walking heart, walking knife, CNC automatic lathe parts 8. Aerospace parts, medical equipment parts
